The Automatic Single head tube end deburring machine is used to chamfer the iron tube with a correct and nice angle. The chamfer tube processing can be used widely in different fields:Weld testing coupons,Plant process piping,Structural piping,Handrails and Staircases,Steel piling - Vertical support,Drill pipe,Drill casing - Oil drilling,Sub sea oil & gas piping,Oil & gas Plant Processing Pipe,Vehicle Manufacturing,Exhaust tubing,Truck tubes,Steering columns,Axle shafts,Automotive seat shafts,Tractor Shafts,Power generation and so on.There are semi automatic precision chamfering machine, manual feeding chamfering machine, automatic chamfering machine, and retract chamfering machine.

Below is one portable chamfering machine hand chamfering machine

this is a Automatic Single head tube end deburring machine

Automatic Single head tube end deburring machine is an manual metal pipe chamfering machine, which comprises a frame, and is characterized by further comprising a spiral feed hopper arranged on the frame, a feed groove communicated with the spiral feed hopper, a delivery groove communicated with the feed groove, an impulse cylinder arranged on the frame and a template pushed by the impulse cylinder, wherein a die hole is arranged on the template, and the position of the die hole is vertical to the delivery groove so as to deliver a to-be-chamfered metal pipe into the die hole. The automatic metal pipe chamfering machine further comprises a pushing cylinder which is arranged on the frame and can feed the to-be-chamfered metal pipe in the delivery groove into the die hole and push out the metal pipe which is chamfered, a blanking groove used for outputting the metal pipe which is chamfered, a left knife arranged on the left of the template, a left moving device which drives a left knife shaft to axially feed, a left rotating device which drives the left knife and the left moving device to rotate, a right knife arranged on the right of the template, a right moving device which drives the right knife shaft to axially feed, and a right rotating device which drives the right knife and the right moving device to rotate.. The automatic metal pipe chamfering machine can simultaneously chamfer two sides of a to-be-chamfered metal pipe, and has high work efficiency, and the chamfered metal pipe has excellent consistence, and is safe and reliable.

Automatic Single head tube end deburring machine characterics is as below:
1.The portable chamfering machine hand chamfering machine clamp molds and knife wheel are designed finished to guarantee the central line of workpiece and knife wheel is exact. Same as the full automatic tube chamfer machine, the outer angle, inner angle and pipe end machining may be finished evenly at one time by the portable chamfering machine hand chamfering machine .
2.Portable chamfering machine hand chamfering machine makes use of the change of belt wheel to shift different rotate speeds, so the life of blade may be as long s possible according to different metal materials.
4.The double-step feeding system saves working time. And the speed is slow for regulating easily.
5.This portable chamfering machine hand chamfering machine is much more economic and costy.

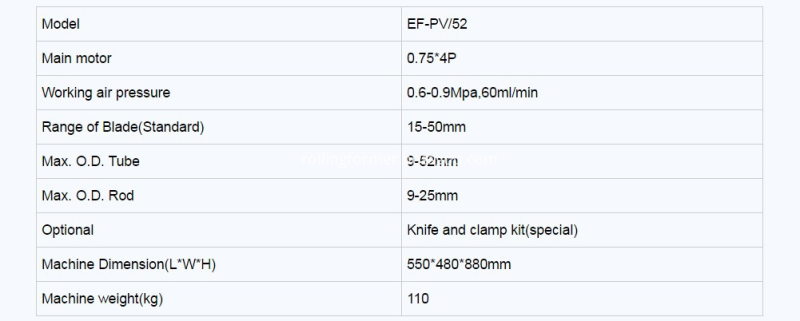

Portable chamfering machine hand chamfering machine can be designed according to your requirement, the chamfer angle size, the location . Our common tube chamfer machine specification is as below for your reference:

Below is some information about the machine customized designing and mamufacturing for every chamfering machine:

Automatic Single head tube end deburring machine The tube chamfer machine can be customized designed according to your requirement:
The customized deisgning including below items:
1. Logo punching . The Logo can be deisgned on your machine, or the logo punching system can be designed on the machine, so your final bending tube can be punched with yout company logo system.
2.The package can be customized made according to your requirements.
3.The pattern can be customed made, we offer customed mold for you.
4.Also we offer the testing service for you.
You only need to delivery the sample pipe to us, we will work out one set of mold, and bending the tube for you, same as your tube size and bending angles.
and we will delivery the tested sampel to you.

How to get an inquiry from us:

Every friends, thank you so much for your reading!
If you need more information about our tube bending machine, please feel free contact me please!
Also if you want to order one tube bender machine, please kindly send me your detailed information to me. we will design the machine for you.
Before we make the full solution for you, we need below information tube parameter from you:

1. Tube material
2. Tube diameter
3. Tube chamfer angle requirements, if possible do you have a frawing or picture to send to us.
4. Do you need other related tube processing machine, such as: Tube cutting machine, Tube chamfering machine, Tube punching machine, Tube end forming machine.
welcome sending me an inquiry now!
