Product Details

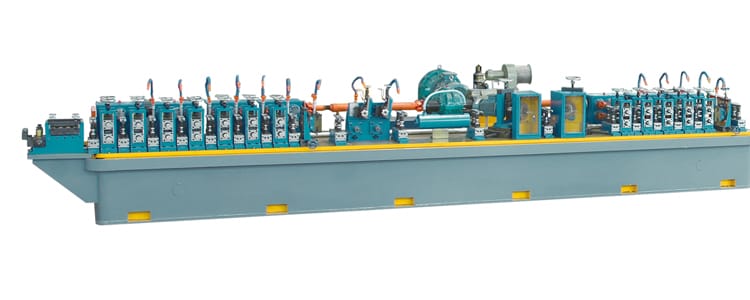

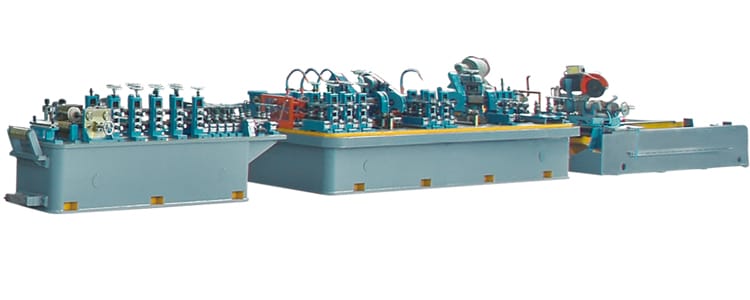

FG20/30 high-precision stainless steel cladding pipe mill line

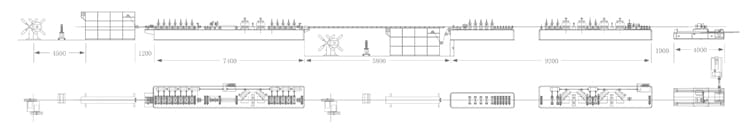

Basic Components
Unoiler
Shear and end welder (Prepared by customer)
Accumalator
Main machine(forming,welding,sizing)
Compositting machine(Preparde by customer)
Computer-controlled rotating cutting saw
Run-out table
Main Technical Parameters
| FG20 machine(unit) | FG30 machine(unit) | |
| Diameter of welded tubes | 8~25.4mm | 13~32mm |
| Wall thickness of welded tube | 0.3~0.5mm | 0.4~0.8mm |
| Speed of tube welding | 10~35M/min | 10~35M/min |
| Power of major motor | 30KW | 37KW |
| High frequency power | 60kw | 60kw |
