ZT Drawing Production line

Drawing product line information
The equipment uses the frequency conversion velocity modulation control system, electric current is stable, is suitable from the big tube process pulls in the steel pipe dials the die head to install to set dials to the acorn tube,thus achieves the ideal caliber.

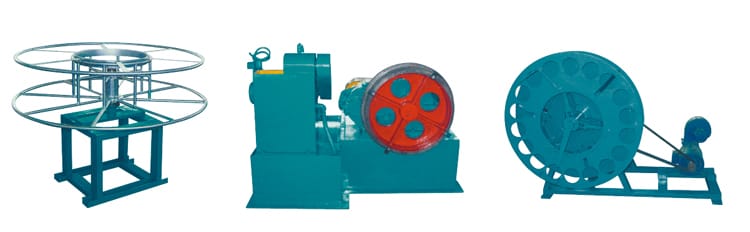

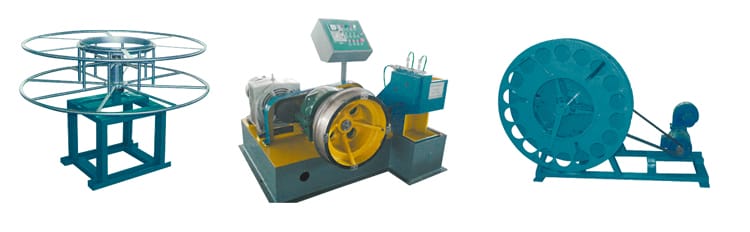

Drawing Device

Manufacturing capacity:
1.Reduce pipe diameter to 7,6.35,6,4.76,4mm
2.Thickness of wall:0.5mm 0.8mm
3.Production speed:0~50m/min

Unwind Device
1.Summary: The rotary movent, maches draws up and down, maches the steel pipe jack,prevents the unfinished piping to disperse escapes.
2.Parameter and not:max. Net weight 200kg
3.Main motor power of drawing:Y112M-4 4KM
Instruction of drawing mainframe: this equipment is used for reducing diamter of 8mm steel pipe trough different diameter tungsten steel die to produce different diameter steel pipe. There is no scrape and drawbench on the surface of pipe blank because of precise device.
