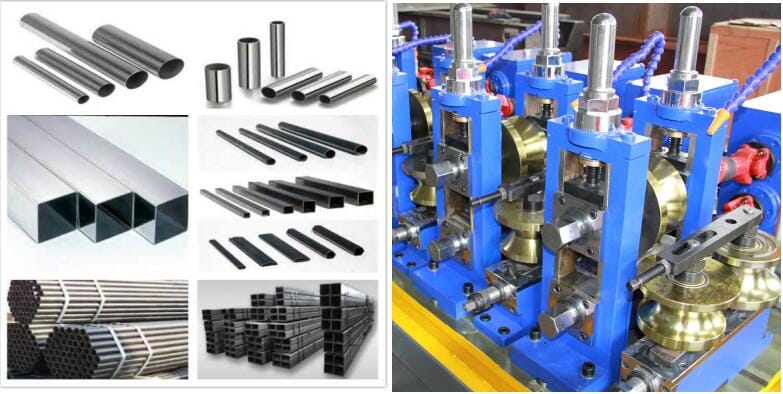

High quality HG76 Tube Mill

What is HG76 Tube Mill?

Tube Mill is the machine for to produce tube, widely used in building,machinery, vehicle industry. The raw material is cold-rolled and hot-rolled coil strip.

The feature of this HG76 Tube mill is high effective and durable.

The technical flow of the HG76 Tube Mill production line

Steel Tape→→ Double-head un-coiler →→Strip-head Cutter and welder→→Spiral Accumulator→→Forming section（Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller）+ De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Flying saw under computer-control →→ Run-out table

This HG76 Tube Mill production line consist of seven part:

1.Double-head Uncoiler

2.Shearing & butt welding machine

3.Cage Loop

4.Forming and sizing mill

5.200kW solid state H.F. welder + Electric Control System

6.CNC flying friction saw

7.Run out Table (15m)

Steel Pipe Specification
