Laser Welded Pipe Mill
This is a 60-type tube mill that closes the seam with a 6000 W fibre laser instead of high-frequency induction. Because the laser puts the heat into a narrow band, the heat-affected zone stays small — which matters on galvanized and thin-wall strip. The line is supplied with a zinc replenishing unit that re-coats the weld zone, so the seam keeps the corrosion protection of the parent strip.
Main specifications
Item | Specification |
|---|---|
Mill type | 60 |
Round pipe | 32-96 mm |
Square pipe | 25x25 mm to 75x75 mm |
Rectangular tube | 100x50 mm |
Wall thickness | 0.8-2.5 mm |
Laser welder | 6000 W, welds up to 2.5 mm, 2 vertical rolls, 40 mm shafts |

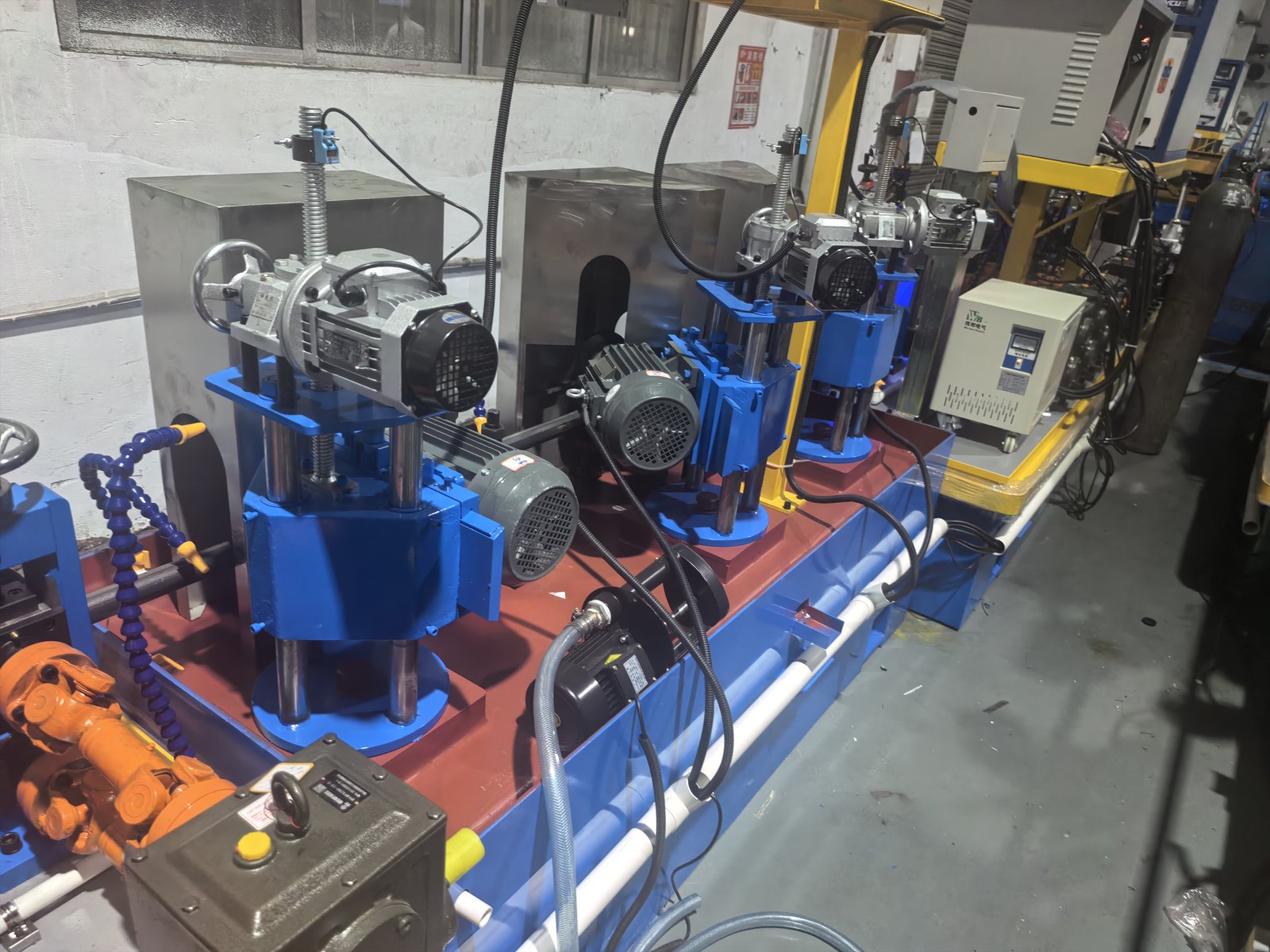

Forming section | 8 horizontal + 8 vertical stands |
Sizing section | 4 horizontal + 4 vertical stands |
Shaft diameter | horizontal 60 mm, vertical 40 mm |
Main drive | 2 x 18.5 kW (Siemens) |
Cutter | Automatic circular saw, model 400 |
Decoiler | Single-head 5 t manual |
Zinc replenishing unit | 18.5 kW |
Cooling system | 1 set |
Discharge table | 1 set |
Supply | 415 V, 50 Hz, 3-phase |
Body colour | Blue with yellow accents |

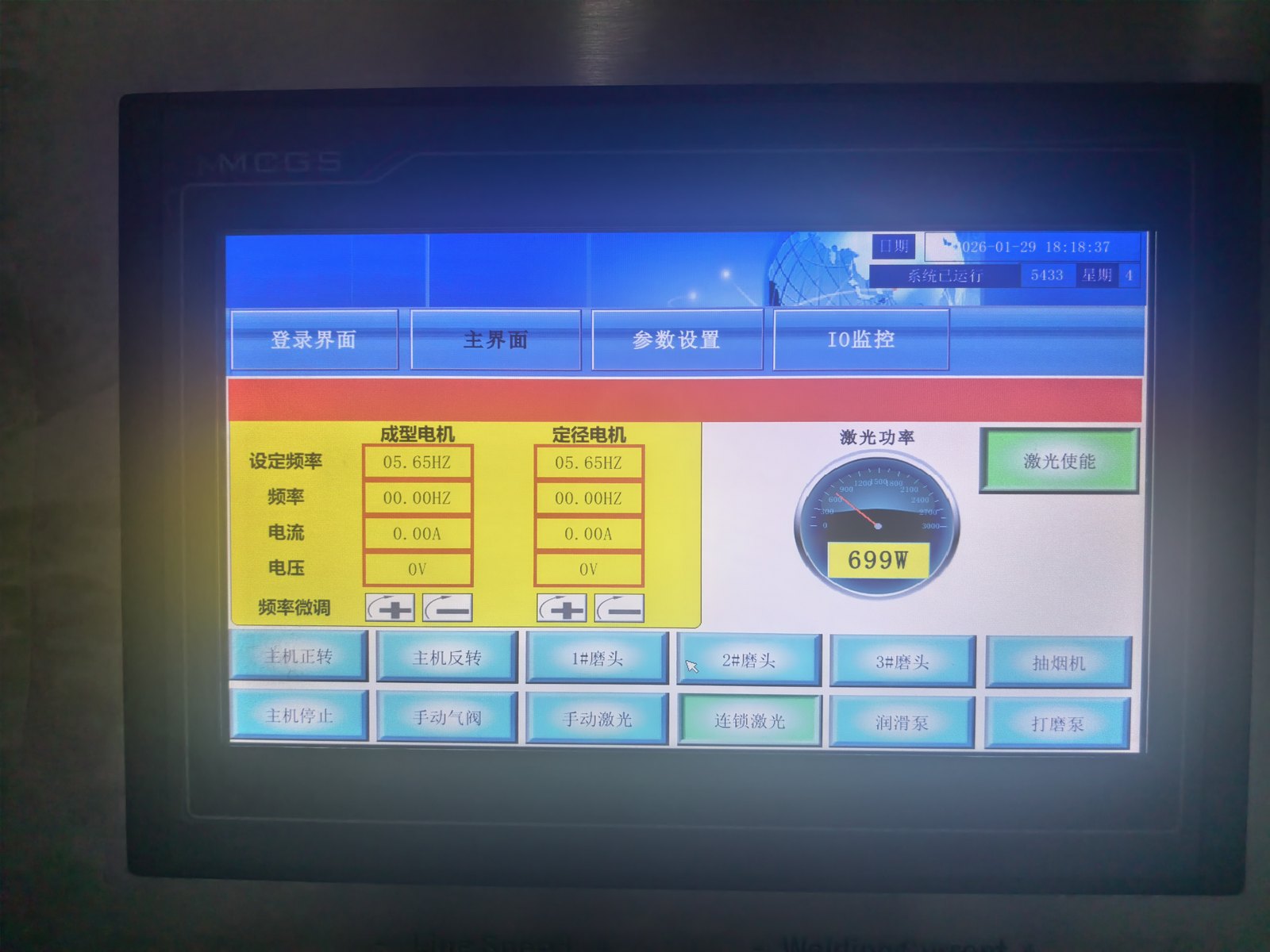

HMI language | Chinese and English |
How the line runs

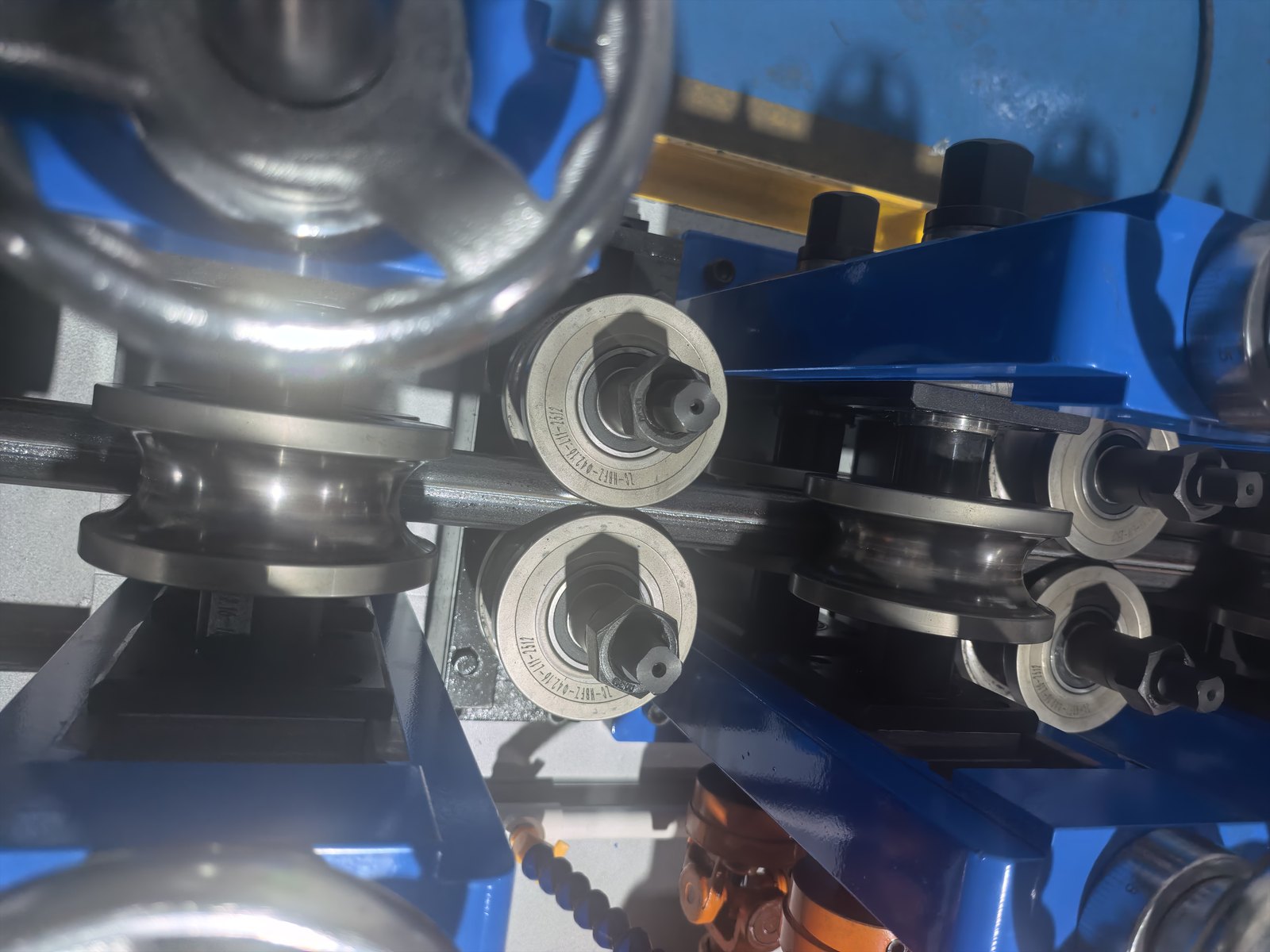

Strip is uncoiled and fed into the forming section, where the flat strip is progressively rolled into a round tube. The open seam is closed and welded by the laser head, the weld is cooled, and the tube passes through the sizing section to its final dimensions. On galvanized strip the zinc replenishing unit re-coats the weld zone. The tube is then cut to length by the automatic circular saw on the run-out side.
Standard tooling
- Round tube: 38 mm, 75 mm
- Square tube: 25x25 mm, 50x50 mm, 75x75 mm
- Rectangular tube: 100x50 mm
Die sets for other sizes in your tube schedule are made to order.
Quality check before dispatch
Forming rolls and the finished tube are measured with calipers and gauges during assembly and again before packing. Weld quality is checked on the run-out side.
What we need from you
Tell us the tube sizes and wall thicknesses you need, the strip material and grade, the coil weight and inner diameter, the country and supply voltage, and the operating language you prefer. Die sets are quoted for the specific tube sizes in your schedule.
