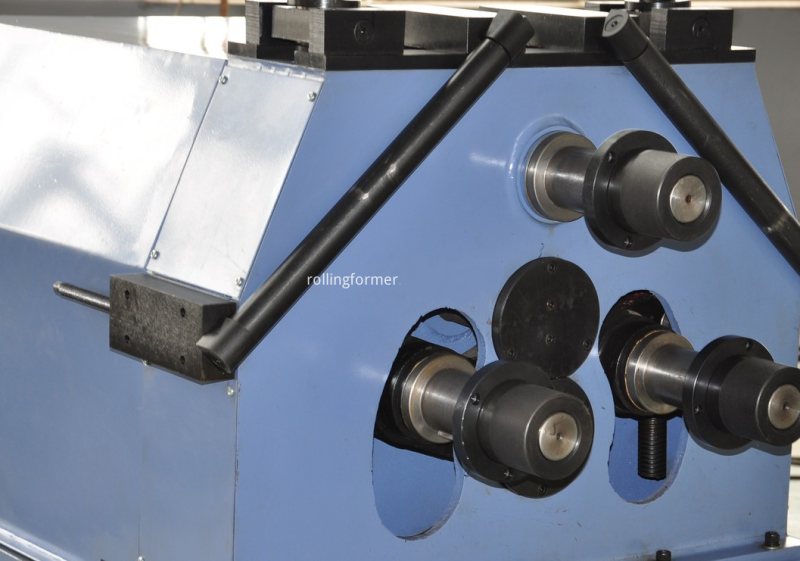

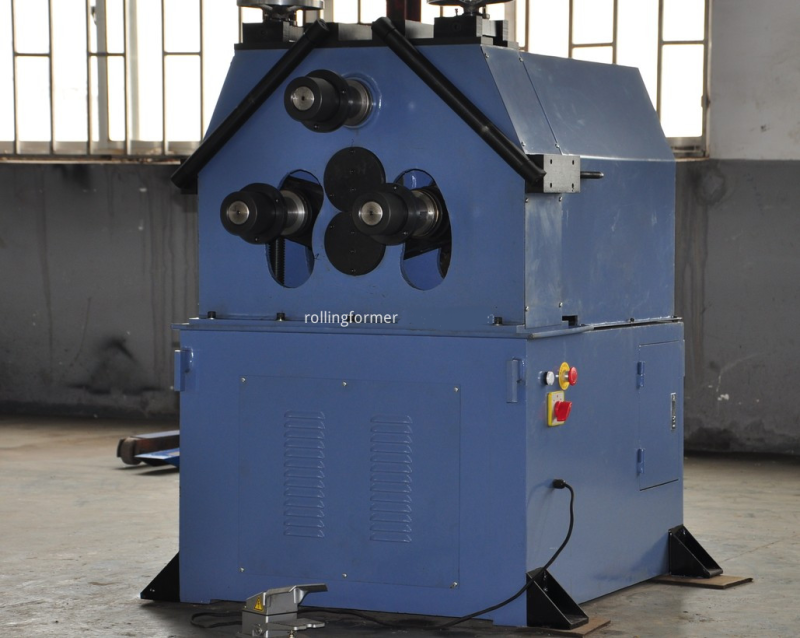

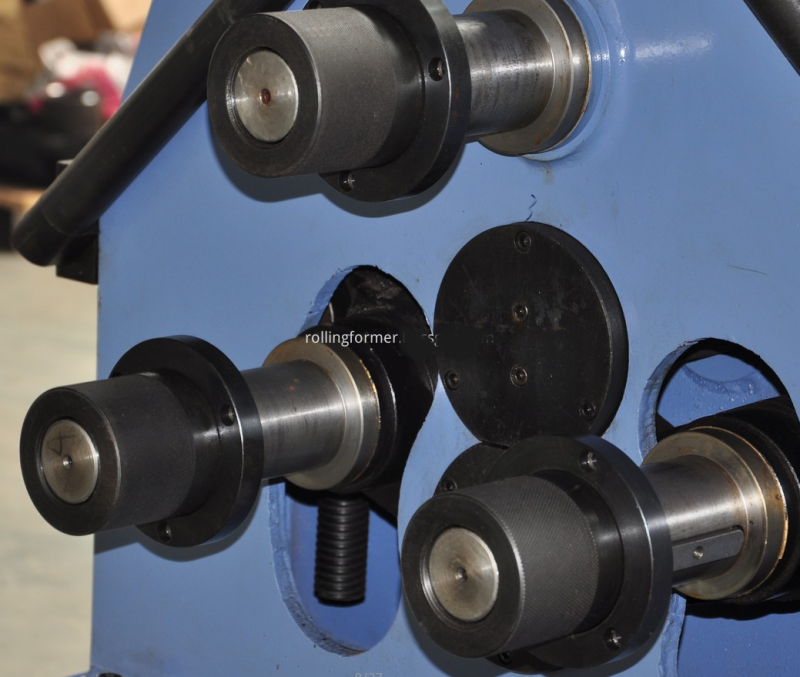

3 rolls bending machine for tube is designed to produce the round circle tube or profiles, such as the L metal angle, the C purline, the Z purline, W purline, H purline and other tubes or profiles. There are 3 rollers tube bending and 7 rollers tube bending, and 11 rollers tube bending, for the greenhouse steel structural tube roller bending forming.below are some pictures of the machines for your reference:
The 3 rolls bending machine for tube main characteristic is as below:
- Full mechanical drive, compact construction, high reliability.
- Three wheels drive, anti-skid, thin-walled material can be bent,
- Two wheels are asymmetric distribution which reduce the straight line section.
- Both sides can feed the pipe material
- With feet switch and emergency stopping function, which is very convenient to operate.
- The machine transmit steadily, It only needs to adjust the distance of between op wheel and down wheel. Different curvature can be obtained circular arc or spiral.
- Change the geometry of moulds, operate can process various metal profiles, such as steel angle, steel flat, round steel and other special-shaped cross-section profiles.
- Bending large diameter profiles, to avoid the drawbacks of making large bending pipe mould, is a necessary complement series for single, double bending machine can not reach.
- The machine is in suit to produce in enormous quantities, with high speed and efficiency.
The specifications for the 3 rolls bending machine are as below:
Item | Value |
|---|---|
Maximum tube diameter | Φ50x3.0 |
Minimum bending radius | R250 |
Roller bending speed | 3 m/min |
Roller mold diameter | Φ250mm |
Motor power | 4kw |
Machine weight | 1200 Kg |
If you want to see the 3 rolls bending machine for tube 3 rollers tube / profile bending machine running, please feel free send me a message, send me your whatsapp, please, i will send the machine running videos to your whatsapp or email us at any time
