What is HG76 Tube Mill?
Tube Mill is the machine for to produce tube, widely used in building,machinery, vehicle industry. The raw material is cold-rolled and hot-rolled coil strip.steel pipe manufacturer
The feature of this HG76 Tube mill is high effective and durable.
The technical flow of the HG76 Tube Mill production line
Steel Tape→→ Double-head un-coiler →→Strip-head Cutter and welder→→Spiral Accumulator→→Forming section（Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller）+ De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Flying saw under computer-control →→ Run-out table

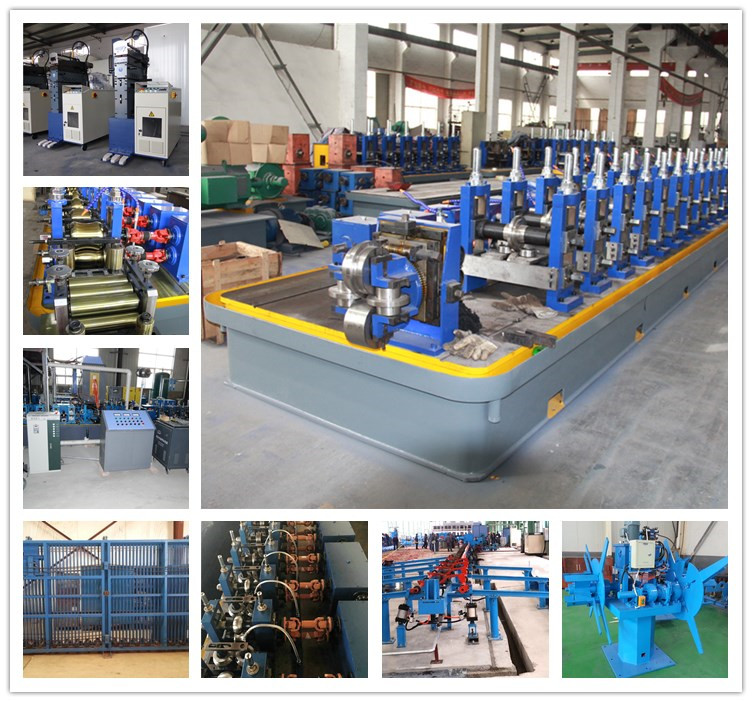

This HG76 Tube Mill production line consist of seven part:
1.Double-head Uncoiler
2.Shearing & butt welding machine
3.Cage Loop

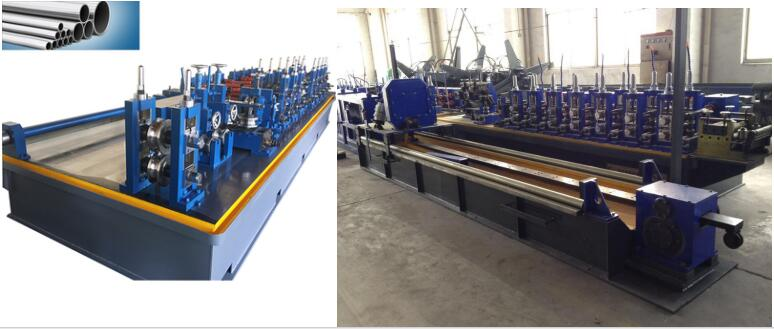

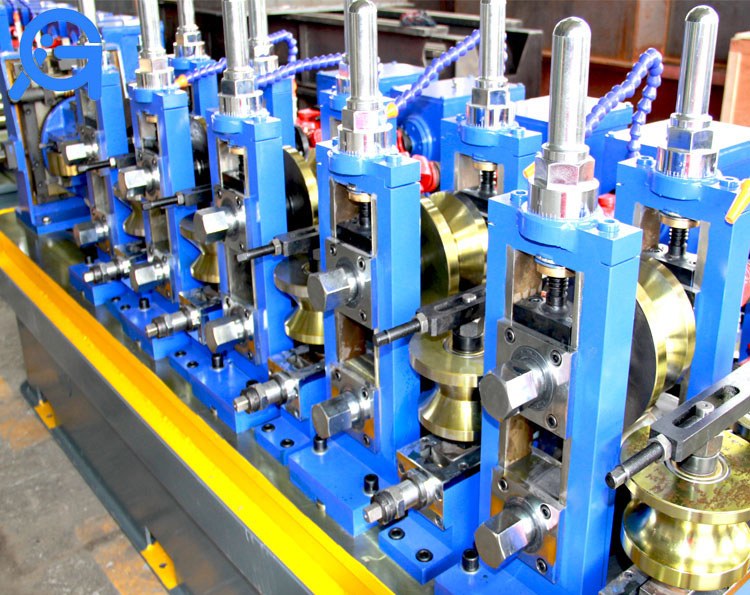

4.Forming and sizing mill
5.200kW solid state H.F. welder + Electric Control System
6.CNC flying friction saw
7.Run out Table (15m)
Steel Pipe Specification
- Pipe diameter: Φ10mm-Φ76mm
- Material: Low Carbon steel
- Steel Tape: Inner diameter: Φ470-510mm
Outer diameter: Φmax=1500mm
Strip steel width: 40mm-160mm
Strip steel thickness: 0.4mm-3mm
The maximum weight: 1.0 tons
3.speed: 40~50m/min
