Hot and Cold Roller Coil Tube Making and Welding Machine

hot roller coil tube machine cold roller coil tube making machine tube welding machine

2.machine Summary

Finished product will be of round, square or rectangular pipe.The mill is intended for manufacturing of round pipe of Φ38mm-Φ127mm with thickness of 1.5mm–5.0mm from cold-rolled and hot-rolled coil strip by means of un closed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths. This machine can be made into different sizes of tube by changing the molds.

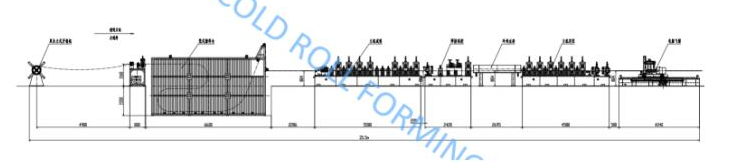

2.The technical flow of the production line

Steel Tape→→ Single-arbor un-coiler →→Strip-head Cutter and welder→→

Spiral Accumulator→→Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)+ De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Flying saw under computer-control →→ Run-out table→→straightening

• Basic conditions
• a) Steel Pipe Specification

• b) Steel Tape Specification

• c) Electricity

• e) Cooling water
• Reservoir for High Frequency equipment: 30 m³, one set
• Reservoir for circulating cooling water: 25 m³, one set
• f) Compressed air
• Pressure: 0.4Mpa
• Flow: 3.0m3/h
• g) Production capacity

Annual output: 70000 ton, according to the yearly working days, daily working hours and the products.

• h) Line speed: 30-60m/min
• Equipment makeup and main parameters of single unit:
• Hydraulic Single-arbor uncoiler with peeler

1.1. Parameters:

1.3. Mandrel expansion by hydraulic

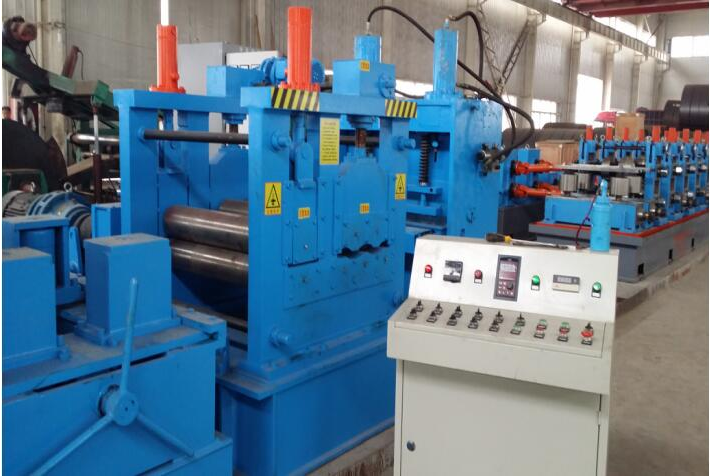

• Five-roll Flattener

2.1 Brief:

There are pairs of nipping and sending roller. Flatten rolls are arranged for two top and three below. Nipping and sending is pressured by hydraulic cylinder, flatter roll motor is cogged by worm wheel and worm screw reduced speed, the worm screws in front and one in back can come true be in-phase by sleeve connecting, which can ensure top leveling roll and under leveling roll be parallel, thereby which reach in the intention of flatten.

2.2 Parameters:

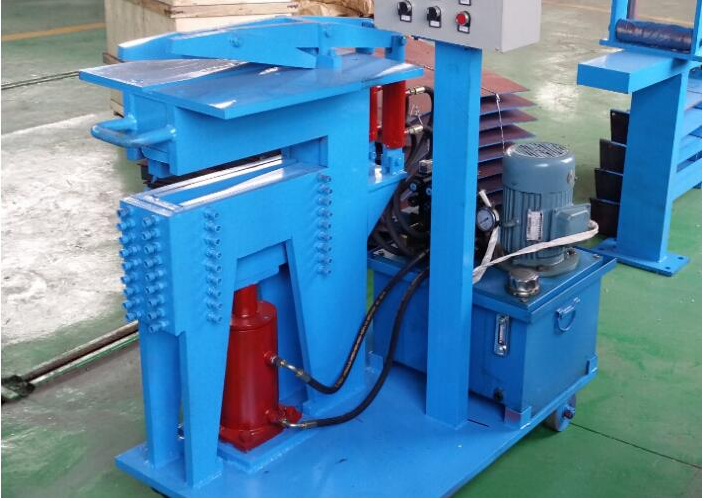

• Shearing & butt welding machine

3.1 Hydraulic shearing parameters machine:

• Cutting by hydraulic system
• Width: ≤400mm
• Thickness: ≤ 5.0mm

3.2 Butt welding machine by manual

• welding machine

3.3 Horizontal spiral accumulator(O.D.: 5.0m)

3.1 Low bracket: 1 set

3.2 Revolver: 1 set

3.3 7 rollers Flattening unit: 1 set

3.4 2 rollers feeding: 1 set

3.5 Accumulator: 1 set

• Feeding speed: Max.200m/min
• Storing capacity: 500meter -700 meter

3.6 High bracket: 1 set

3.7 Hydraulic system 1 set

3.8 Electrical system 1 set

3.9 Motor: Feeding motor: 30KW

4.1 Forming mill gearbox, universal joint

4.1.1 Mill entry flattener by up-horizontal roll and below-horizontal roll, one positive five-roll flattener, one pair of feeding vertical roll.

4.1.2 Forming mill consists of:

• Gear box & universal joint: 7sets

• Horizontal roller frame with worm gear & shaft. adjust up and down at same time and level.

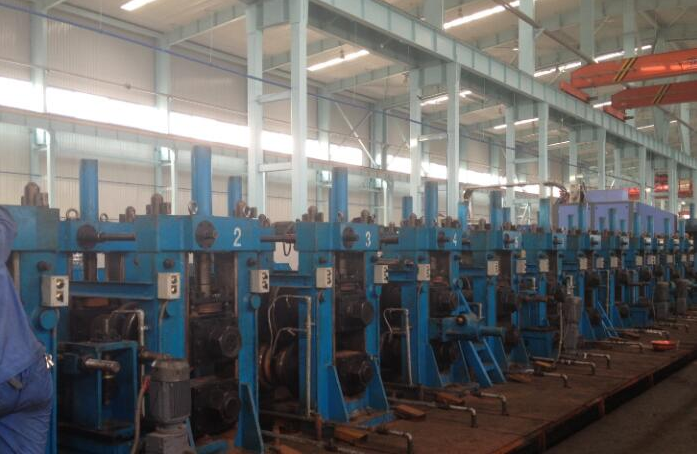

4.2 Sizing mill gear box, universal joint

4.2.1 Sizing mill consist of:

• Gear box & universal joint: 5 sets

• 2 sets single head Turkshead, with 4 rollers*2sets
• One speed testing roller with air cylinder for CNC flying saw
• Horizontal roller frame with worm gear & shaft. adjust up and down at same time and level.

• Welding section

5.1 Welding section consist of:

5.2 Cooling section

• Cooling trough: 1 set
• Cooling trough length: 4.0 m

5.3 Solid state High frequency welder(GGP300KW)

• With water-water cooler for welder
• CNC flying friction saw

6.1 Flying cut-off, mechanical section consist of:
