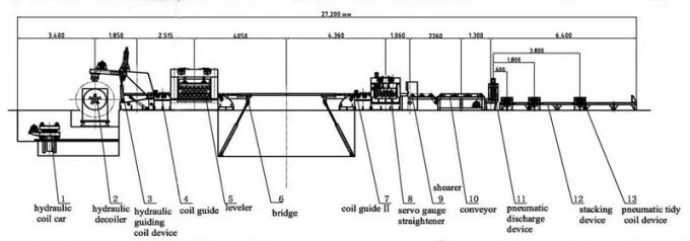

What the line is built for
This line cuts aluminium coil up to 2600 mm wide and 1.5 mm thick to lengths of 4000 mm. The strip is levelled in a 15-roll cassette before it reaches the shear.
Main technical parameters
Item | Value |
|---|---|
Coil material | Aluminium coil |
Coil thickness, max | 1.5 mm |
Coil width | 2600 mm |
Cut length | 4000 mm |

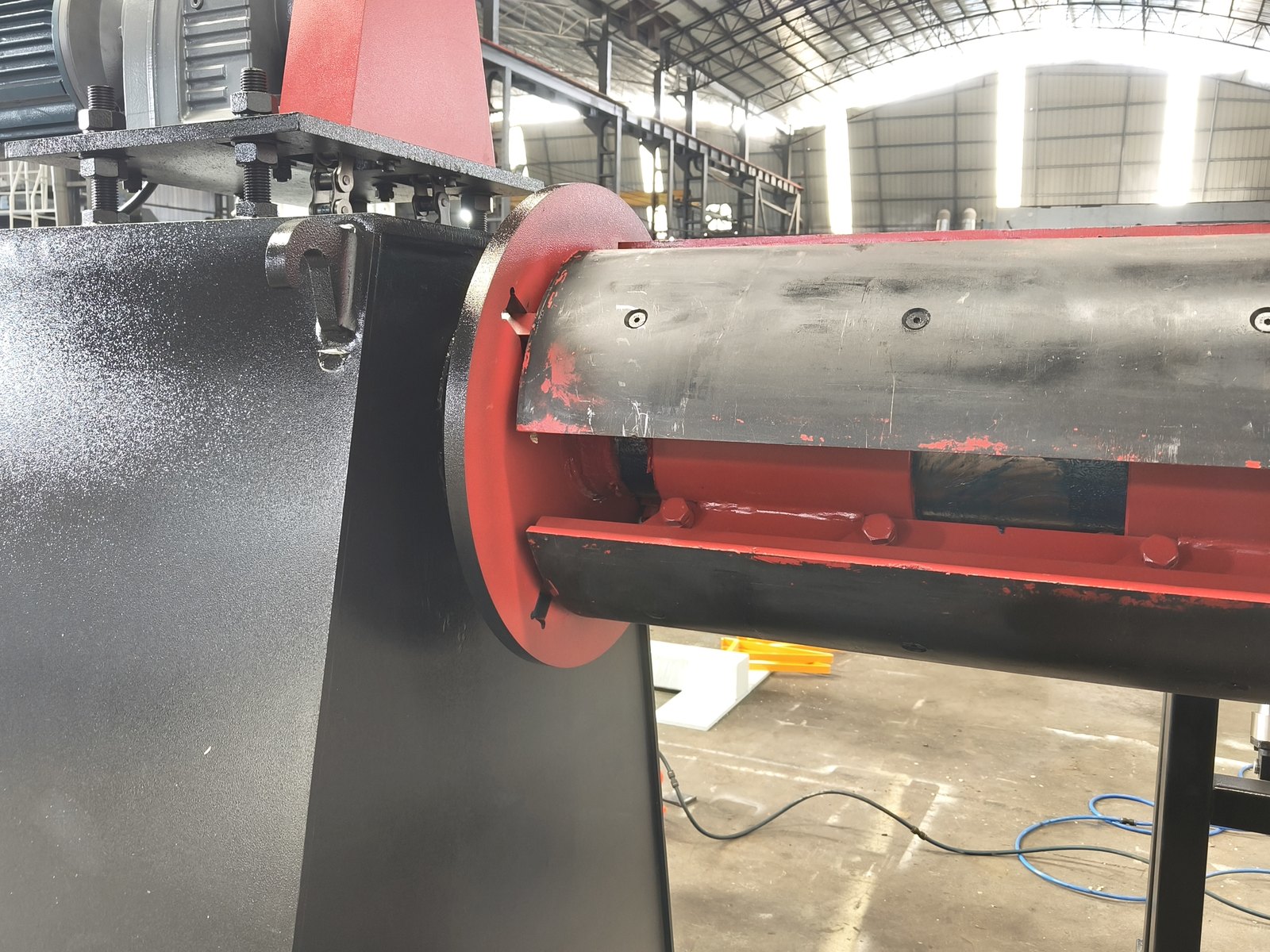

Decoiler | 5 t hydraulic, with loading car; coil OD max 1600 mm, ID 470-530 mm |
Max working speed | 20 m/min |
Leveller | 15 rolls, 4-high, 7 over 8, one feed shaft |
Leveller rolls | Ø100 mm, effective face 2600 mm, 40Cr, high-frequency hardened, hard chrome plated |
Backup rolls | 4 rows top and bottom, Ø90 mm, 45# steel, high-frequency hardened |
Couplings | 45# steel |
Motors | 5.5 kW on the decoiler; 7.5 kW servo on the leveller; 5.5 kW on the shear |
Shearing | Thickness 1.5 mm, width 2600 mm |

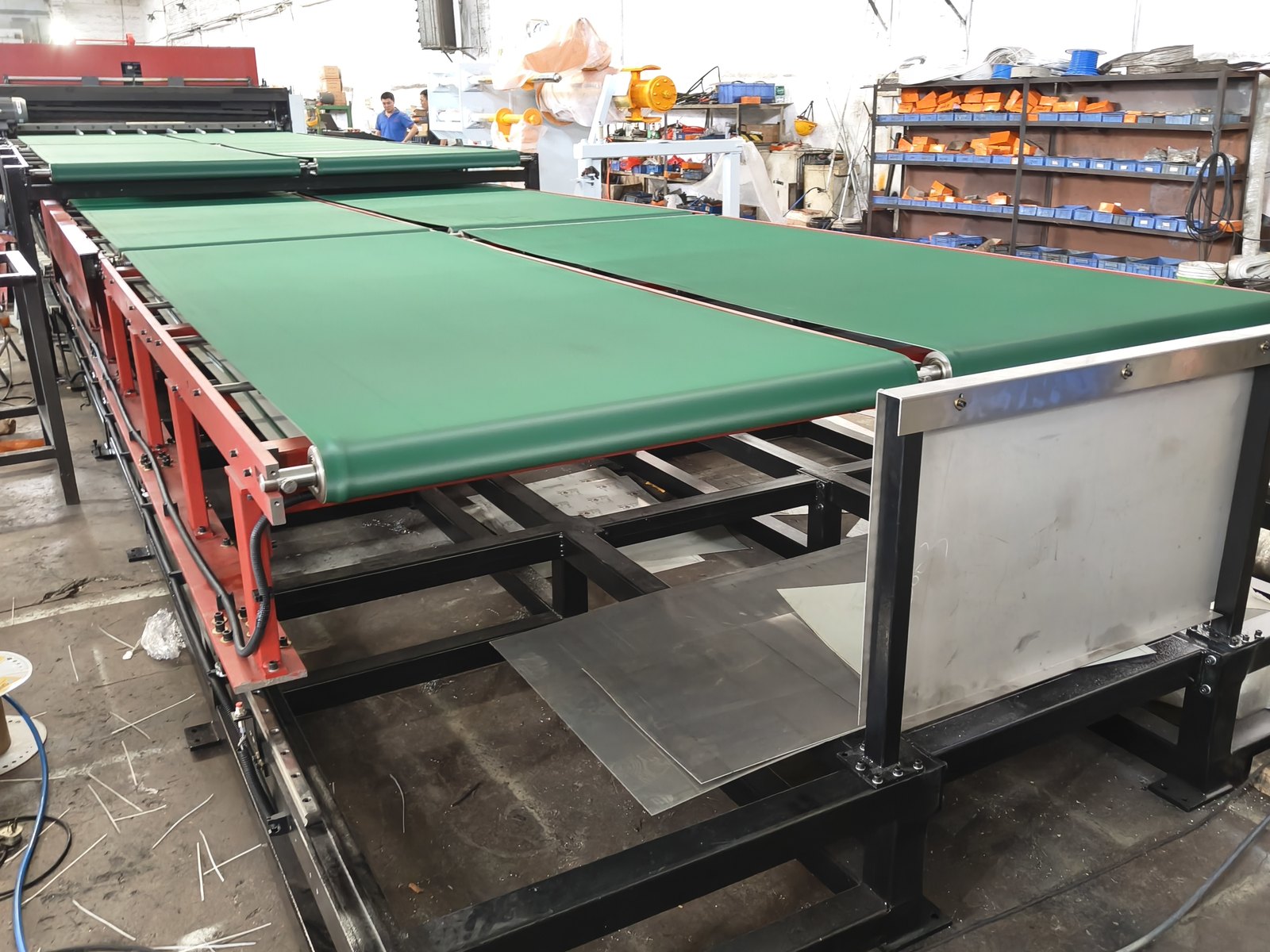

Run-out table | 6 m |
Hydraulic | 2 hydraulic power units |
Power supply | 400 V, 50 Hz, 3 phase |

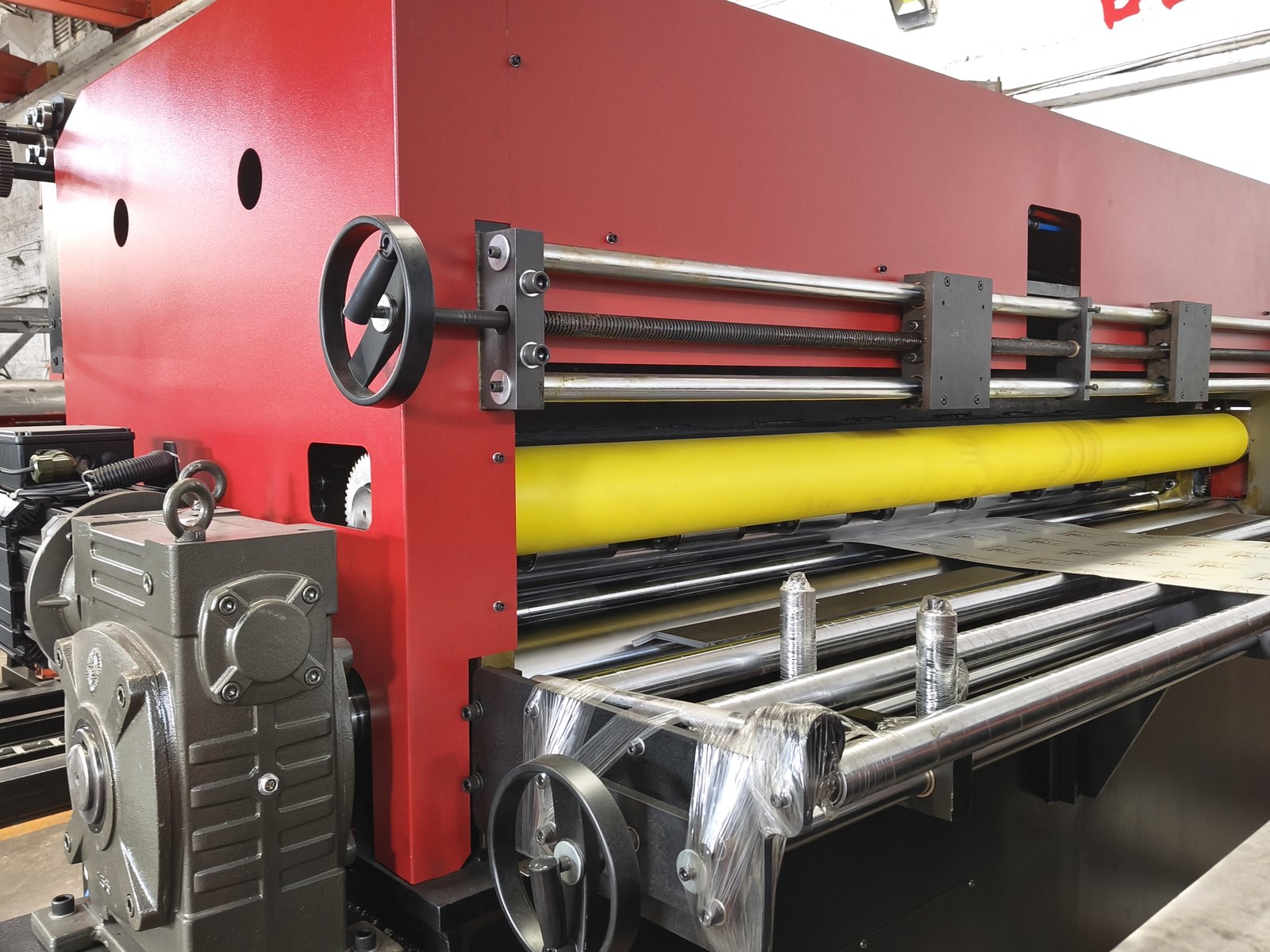

The leveller
The leveller carries 15 rolls in a four-high arrangement, seven over eight, one of which is a feed shaft. The rolls are Ø100 mm with an effective face of 2600 mm, made in 40Cr, high-frequency hardened and hard chrome plated. Above and below them run four rows of short backup rolls, Ø90 mm in 45# steel, hardened the same way.
Frequently asked questions
What coil width does the line take?
Up to 2600 mm, in aluminium up to 1.5 mm thick.
How many rolls does the leveller have?
15 rolls in a four-high arrangement — seven over eight, with one feed shaft — plus four rows of short backup rolls above and below.
What length can the line cut?
4000 mm, at a maximum working speed of 20 m/min.
How is the coil loaded?
By a 5 t hydraulic decoiler with a loading car, for coil with an outside diameter up to 1600 mm and an inner diameter of 470 to 530 mm.
What power supply does the line need?
400 V, 50 Hz, three phase.
What to send for a quotation
To size the line, the following are needed:
- Coil material and grade
- Coil width and thickness range
- Cut length required
- Coil weight and coil inner diameter
- Required line speed in m/min
- Power supply at your site, voltage and frequency
