Decoiler

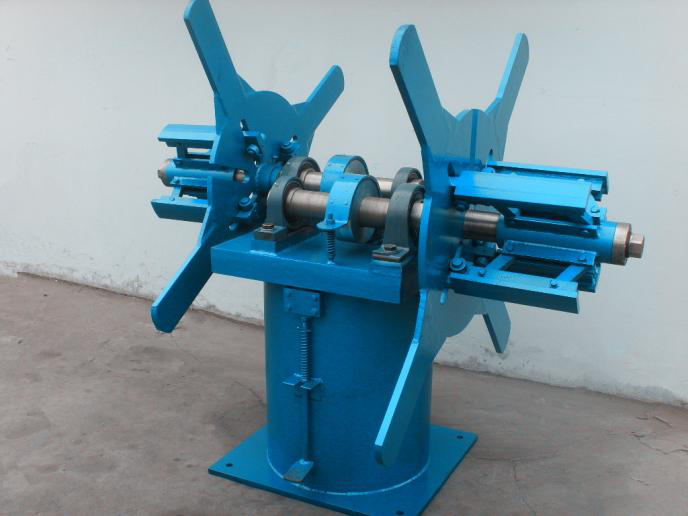

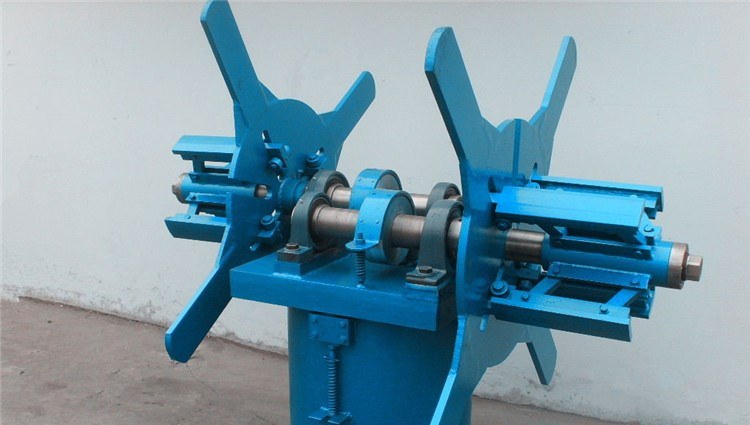

- Double-head Pneumatic Tension Decoiler
Operate: To put coil on the decoiler and then mandrel will expend by pneumatic system and fix the coil on the mandrel. It is passive moving because it is pulled when roll forming machine works.
Advantage: With pneumatic system to control mandrel expansion and stop,
it is safety and easy to control.
Parameters
Item | Value |
|---|---|
Coil width | max.240mm |
Coil OD | max. Ø1500mm |
Coil ID | Ø 470- Ø 510mm |
Coil weight | max. 2.0 tons * 2 |
1.1. Mandrel expansion by Pneumatic
1.2. Mandrel position rotation shall be manual
1.3. Pneumatic brake

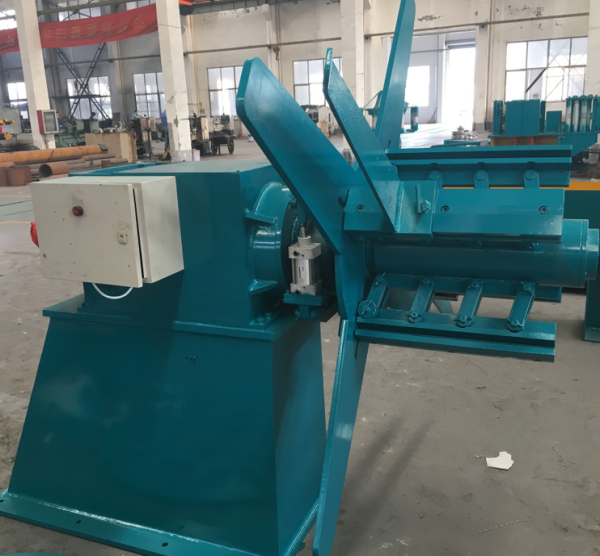

- Single-head Hydraulic Tension Decoiler
Operate: To put coil on the decoiler and then mandrel will expend by hydraulic system and fix the coil on the mandrel. It will rotate automatically after setting
Advantage: With hydraulic system to control mandrel expansion and stop,
it can rotate forward and reverse, which is more easy to control the coil.

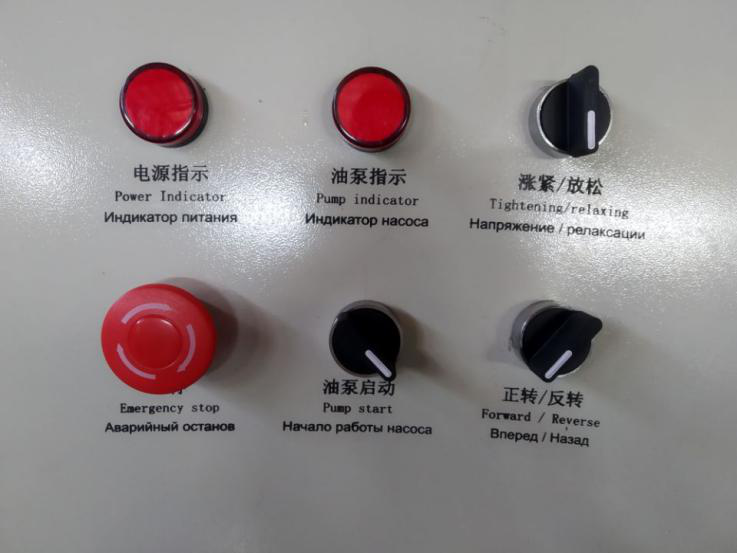

The buttons on the control panel are famous brand---high quality and durable.
Parameters:
Item | Value |
|---|---|
Coil width | max.320mm |
Coil OD | max. Ø1500mm |
Coil ID | Ø 450- Ø 550mm |
Coil weight | max. 2.0 tons |
2.1. Mandrel expansion by hydraulic control
2.2. Mandrel rotates by hydraulic control
2.3. Hydraulic brake

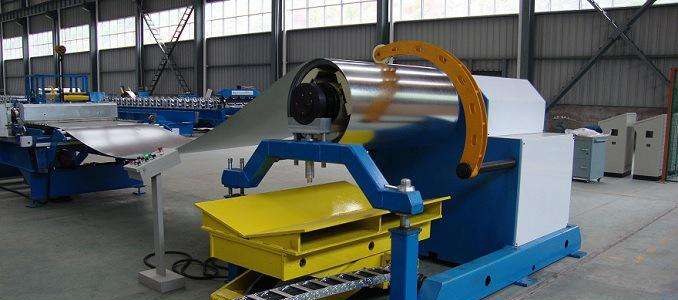

Related pages: hydraulic decoiler with loading car.
