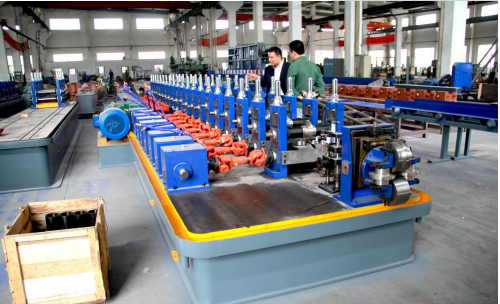

steel welded tube Roll Forming Machine/iron pipe tube rolling machine
- Summary
The mill is intended for manufacturing of round pipe of Φ10mm-Φ89 mm with thickness of 0.4mm–6.0mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder, longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths. Finished product will be of round, square or rectangular pipe.
- The technical flow of the production line

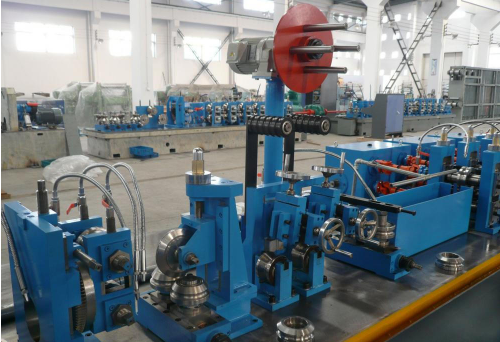

Steel Tape→→ Double-head un-coiler →→Strip-head Cutter and welder→→
Spiral Accumulator→→Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)+ De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Flying saw under computer-control →→ Run-out table
III. Basic conditions:
- a)Steel Pipe Specification
Item | Value |
|---|---|
Pipe diameter | Φ10mm-Φ90mm |
Pipe Thickness | 1.0mm–3.5mm |
Square pipe example | 15x15-70x70mm Max for square pipe |
Rectangle pipe example | 15X30-80x60 Max |
Pipe Thickness | 1.0mm–3.5mm |
Pipe Length | customize Max is 12 |
Length Tolerance | 0-6mm |
- b) Steel Pipe Specification
Item | Value |
|---|---|
Material | Low Carbon steel |
Steel Tape | Inner diameter: Φ470-510mm |
Outer diameter | Φmax=1500mm |
Strip steel width | 40mm-160mm |
Strip steel thickness | 0.4mm-3.5mm |
The maximum weight | 1.0 tons |
- c) Electricity
Item | Value |
|---|---|
Dynamic power | AC380V±10%, 3phases, 50Hz±1.0% |
Control Power | AC220V±10%, one phase, 50 Hz ±1.0% |
Electric installed capacity | 200KW |
- e) Cooling water
- Reservoir for High Frequency equipment: 15 m³, one set
- Reservoir for circulating cooling water: 15 m³, one set
- f) Compressed air
- Pressure: 0.4Mpa
- Flow: 0.5m3/h
- g) Production capacity
Annual output: 10000 ton, according to the yearly working days.daily working hours and the products.
- h)Line speed:30-90m/min
The machine is composed by the following elements:

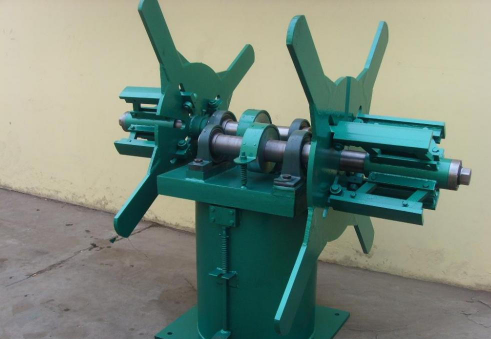

Double head decoiler:
Stroage acuumulator

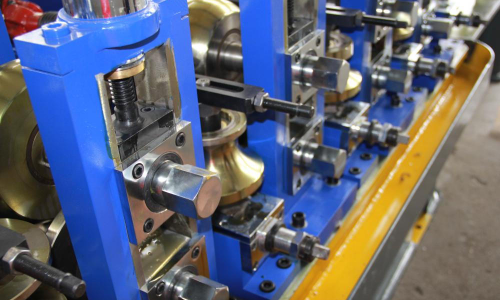

Main roll forming machine of making tube shape from coil.
Automatic pipe welding system.
