Machine Description | Quantity | Delivery time | Container Type | Price USD FOB TIANJIN |
|---|---|---|---|---|
fillet welded pipe roll forming machine | 1 SET | 45 working days after receiving deposit | One 40 FT Up to final design | USD79000---249000 |
The following types fillet welded pipe roll forming machine:

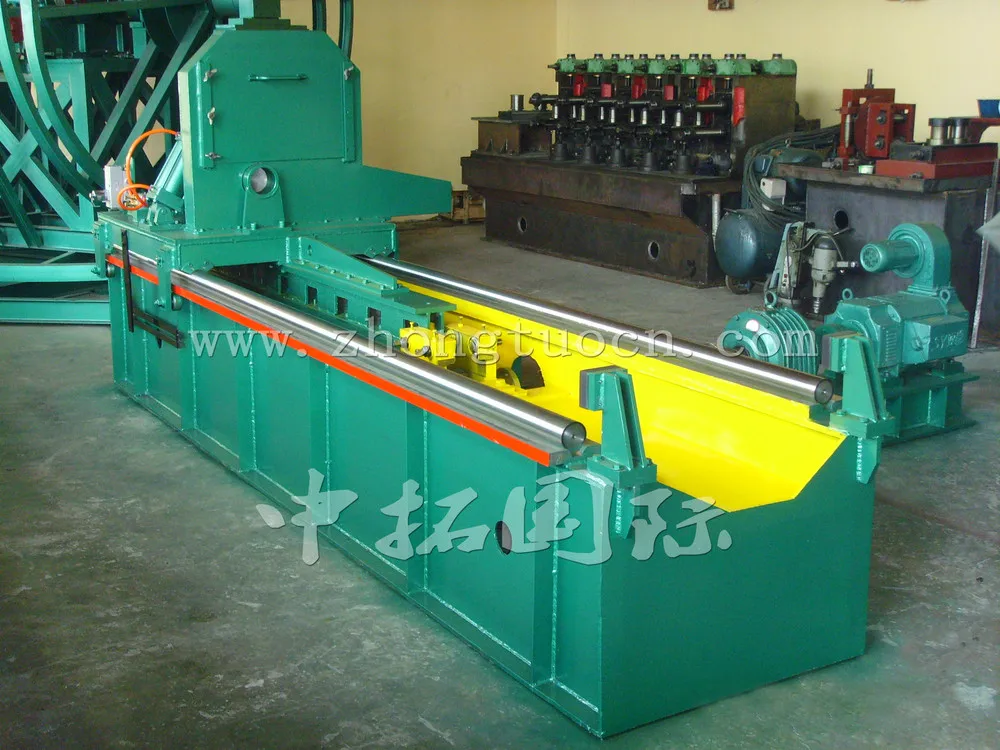

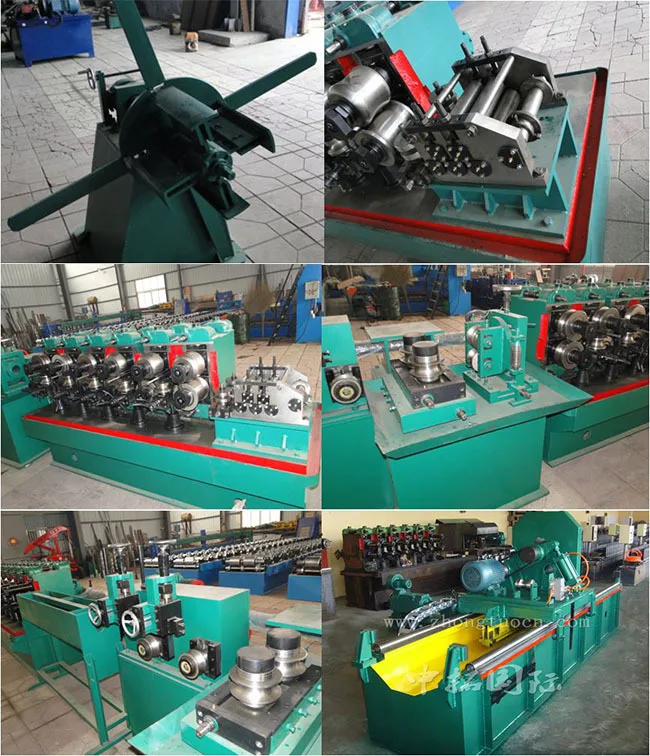

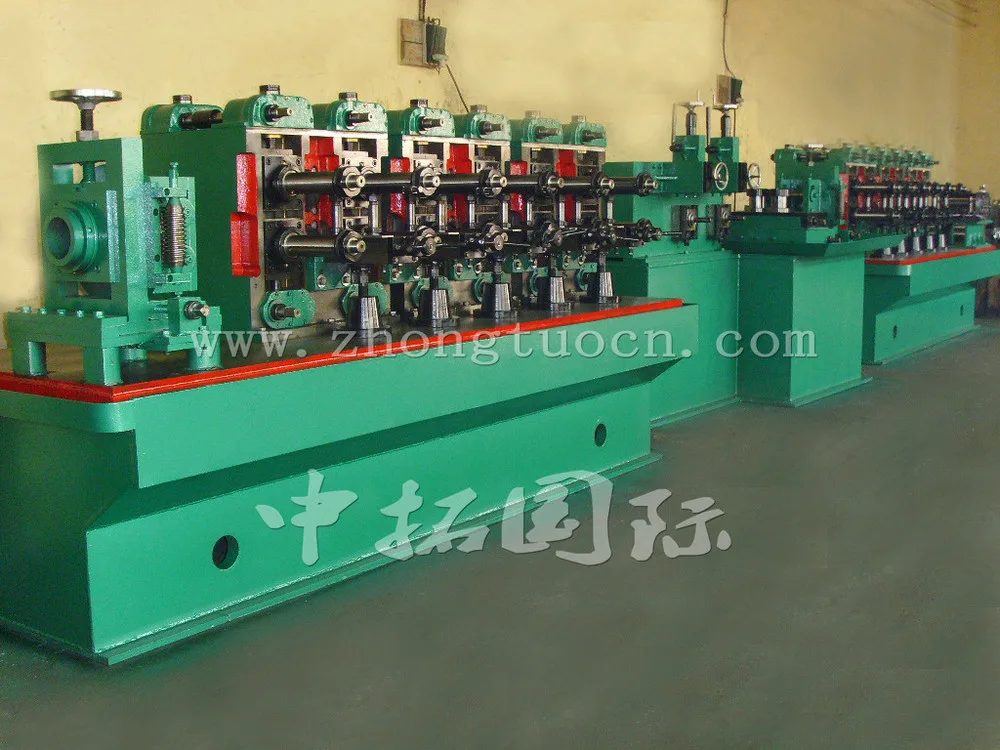

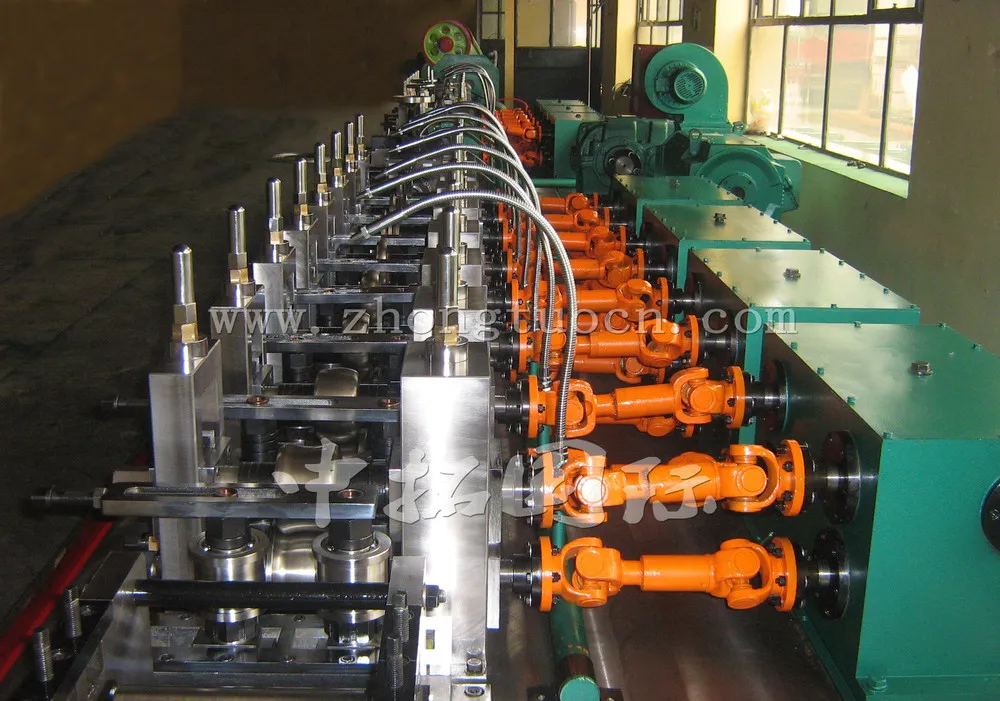

Here are some fillet welded pipe roll forming machine pictures:

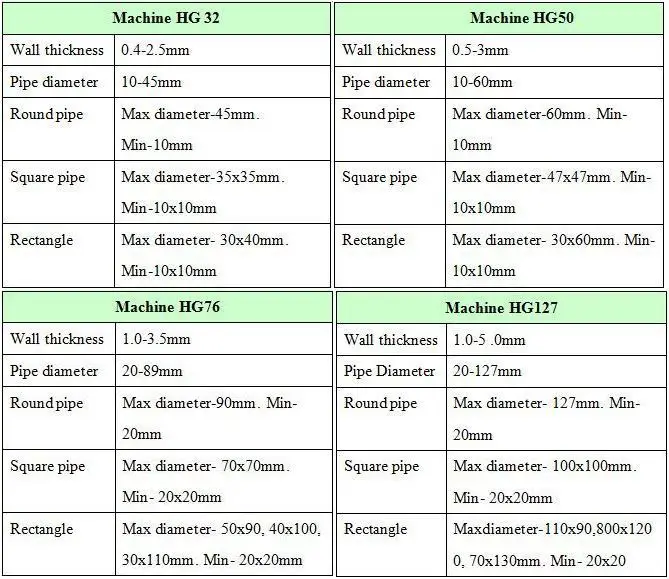

Basic fillet welded pipe roll forming machine parameters:
Main elements of fillet welded pipe roll forming machine
Name | Frame | Parameters |
Loading car | Up coil by hydraulic power and motored car by electric power | Outside diameter of coil:1000-1600mm Max coil weight:6T Car speed:6m/min |
Decoiler | Conehead style with slider, motored by hydraulic power to open coil with brake. | Coil outside diameter:1000—1600mm Max coil weight:6T Motor: 4KW Oil tank: 110mm for 500mm one time |
Unbender unit | Open coil and put it to next processor. It has four oil tanks for leveling coil, open coil, up coil and put it to feeder. | Supported coil width:160—480mm Coil thickness: 2.0 -5.0mm Motor:2.2KW |
Two roll pass coil feeder | Send coil to cut to length machine for getting valid width of coil and then welded coils together. AC motor, gear box transmission and power by hydraulic tank. | Supported coil width:160-480mm Thickness of material:2.0-5.0mm Feeding speed: 20m/min Motor: AC 11KW |
Cut to length machine | Remove Irregular part of coil head and end for welding with new coil. Dragon Gate style upper cutting. | Supported coil width:160-480mm Thickness of material:2.0-5.0mm Oil tank power: 10mpa |
Platform for welding | Welded coil with next for nonstop production. Double diameter cylinder for tighten coil then weld them together. | Supported coil width:160-480mm Thickness of material:2.0-5.0mm |
Four-roll coil feeder | This part is for making sure there is enough coil in the accumulator, deliver coil to the accumulator. | Roller diameter:180mm Rolling width:580mm Material:GCr15 Motor:YCT 30KW Speed:100m/min |
Cage Accumulator | For coil stock and nonstop production. There are four parts, fixed frame, adjustable frame, coil plate and roller for tightening coil. | You can adjust this accumulator according to the coil width. |
More about fillet welded pipe roll forming machine
