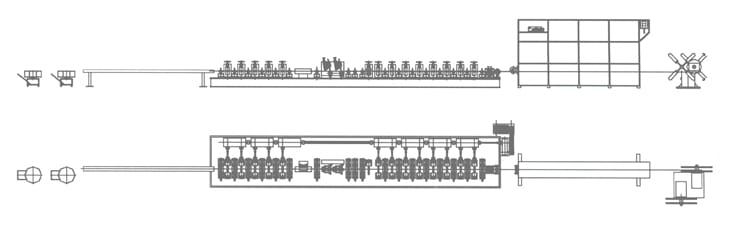

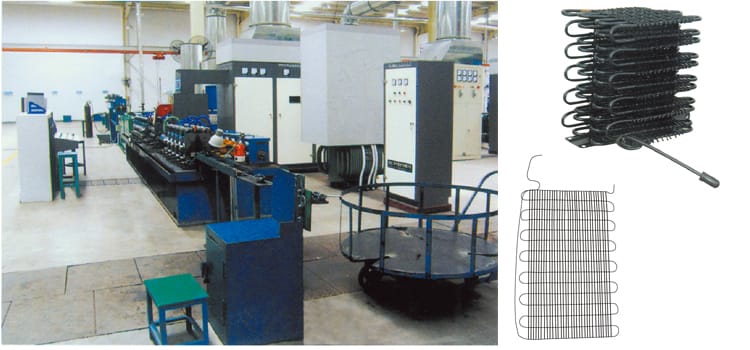

Precision Longitudinal Welded Pipe Unit(mainly used for refrigerator, air conditioner etc.products in refrigeration industry)
Double-head uncoiler
Briefing:Rotary type to change coils easily with a pneumatic brake
Parameters:
Item | Value |
|---|---|
The max.weight of coil | 500kg |
The inside diameter of coil | 350-450mm |
The max.outside diameter of coil | 1100mm |
The max.width of coil | 100mm |
Main drive
- The main motor is driven by model Z4-160-11,22kg DG motor
- Model ZLY 140 speed reducer, the ratio is 4:2:1
- Imported OL DC control device to drag
Material collecting cage
Item | Value |
|---|---|
Material | made of angle and channel iron |
Feeding speed | >=200m/min |
Collecting capacity | >=400mm |
Width adjustment
Range:22-80mm
Rolls for collecting material
- Material:Gcr15
- Feeding rollss 115mm,2pieces
- Motor:1.5kw,1 set
Wind-up Device
Wind the pipe in trolley with three-roller rolling device in the speed of pipe.
High-frequency
Item | Value |
|---|---|
MODEL | GP100-0.6-H |
Input power | 3P,380V,50HZ |
Qutput power | 100kw |
Control mode of output power | regulated by microprocessor |
High voltage rectifier | 20A |
High voltage transformer | 3.380V,180 KVA |
Electronic tube | FU-911S |
Transformer of the electronic tube shaking | 12V-AV |
Anode hydraulic pipe of electronic tube | Polythene reinforcing tube |
Capacitor | CCG81-2000P-20KV |
