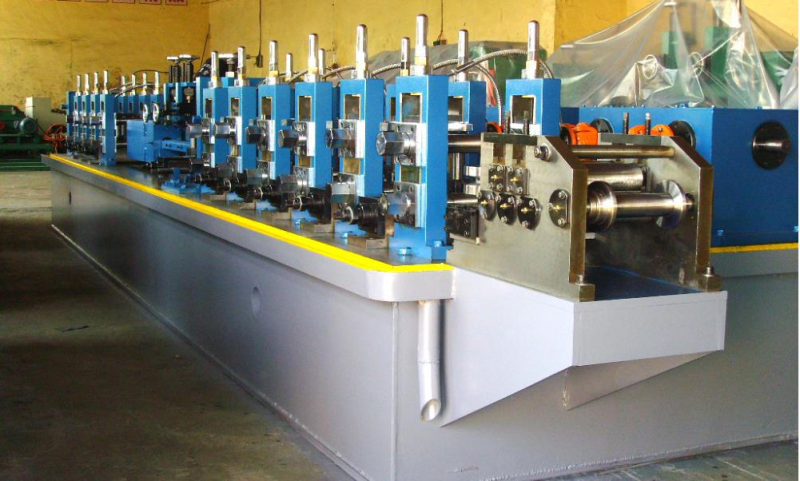

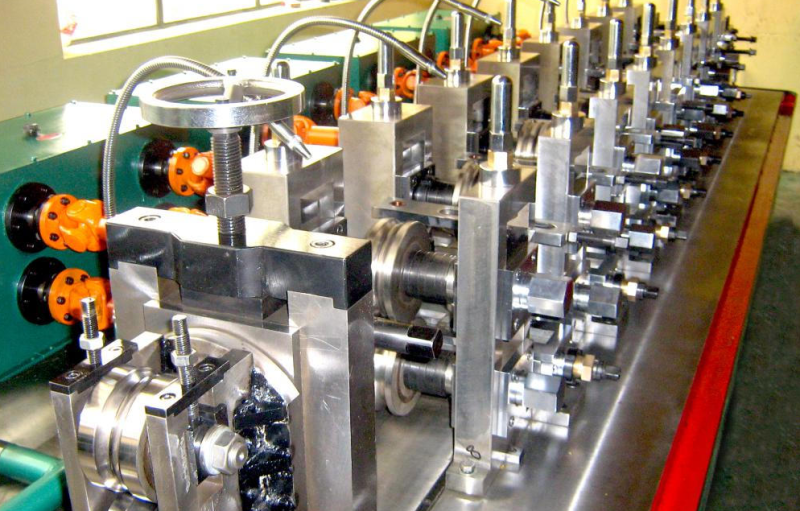

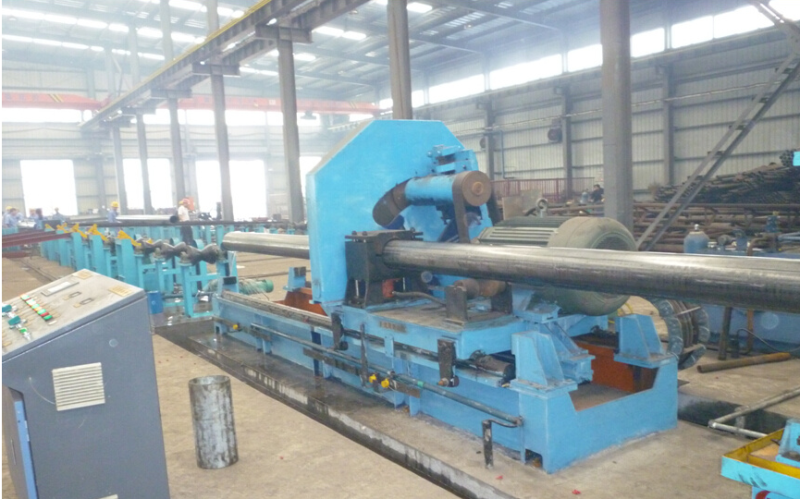

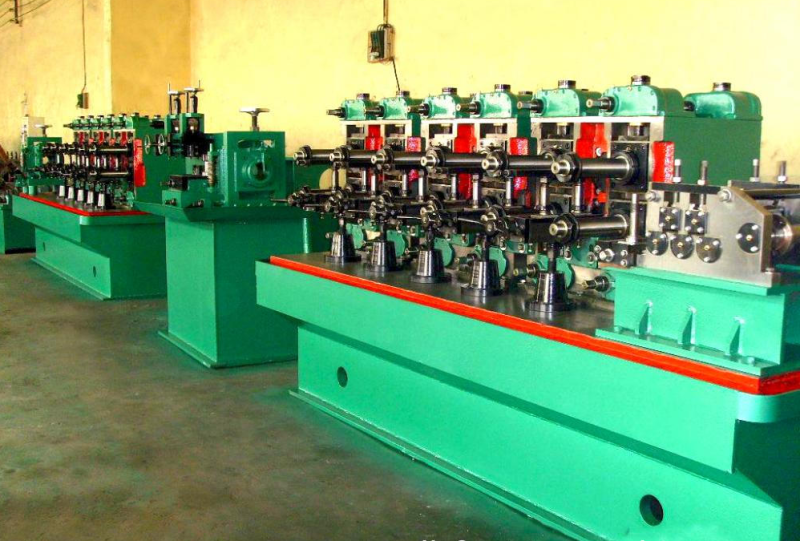

Zhongtuo steel pipe/carbon steel pipe processing equipment
Zhongtuo steel pipe/carbon steel pipe processing equipment could be used to make steel pipe, carbon steel pipe by welding method. The material thickness could range from 0.5-5mm, the pipe diameter range could from 10-127mm. These pipe machine could be used to make squre pipe, oval pipe, round pipe and other noncommon shape pipes.

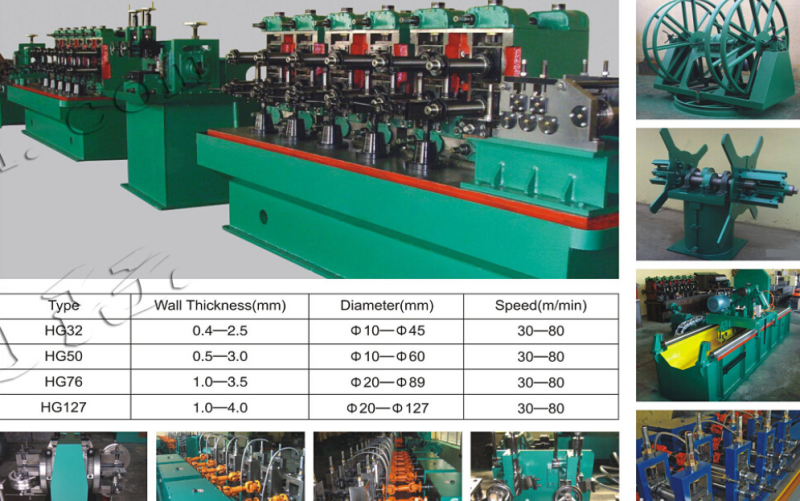

Machine HG 32
This HG32 pipe making equipment could be used to make the following specification.
Wall thickness from 0.4-2.5mm
Item | Value |
|---|---|
Pipe diameter | 10-45mm |
Round pipe | Max diameter pipe-45mm diameter. Min diameter-10mm |
Square pipe | Max diameter pipe-35x35mm Min size 10x10 |
Rectangle | Max diameter for example: 30x40mm 10x10mm |
Price | 75000 USD |
Mould | 3200 USD one set |
Machine HG50
This HG50 pipe making equipment could be used to make the following specification.
Wall thickness from 0.5-3mm
Pipe diameter from 10-60
Item | Value |
|---|---|
Round pipe | Max diameter pipe-60mm diameter. Min 10mm diameter |
Square pipe | Max diameter pipe-47x47mm Min square pipe 10x10mm |
Rectangle | Max diameter for example: 30x60mm Min is 10x10mm |
Price | 100.000 USD |
Mould | 3500 USD one set |
Machine HG76
This HG76 pipe making equipment could be used to make the following specification.
Wall thickness from 1.0-3.5
Pipe diameter from 20-89
Item | Value |
|---|---|
Round pipe | Max diameter pipe-90mm diameter. Min is 20mm diameter |
Square pipe | Max diameter pipe-70x70mm Min is 20x20mm |
Rectangle | Max diameter for example: 50x90, 40x100, 30x110mm Min 20x20mm |
Price | 125.000 USD |
Mould | 4500 USD |
Machine HG127
This HG127 pipe making equipment could be used to make the following specification.
Wall thickness from 1.0-4.0
Diameter from 20-127mm
Item | Value |
|---|---|
Round pipe | Max diameter pipe-127mm diameter. Min is 20mm diameter |
Square pipe | Max diameter pipe-100x100mm Min is 20x20 diameter |
Rectangle | Max diameter for example: 110x90, 800x1200, 70x130mm Min is 20x20 diameters. |
Price | 270.000 USD |
Moulds | 15800 one set (the smallest one) |
